THT Through Hole Assembly Technology

THT Through Hole Assembly Technology

Insertion machine equipment is a very important type of equipment in modern manufacturing. They are machines used to insert electronic components into printed circuit boards (PCBs). These devices perform well in high-speed production and accuracy, and therefore have been widely used in the electronic manufacturing industry. In this article, we will explore the technical aspects of insertion machine equipment.

Insertion head technology

Insertion head

Head technology is an important factor in determining the performance of insertion machine equipment. The head needs to be able to accurately capture electronic components in a very short period of time, and then insert them into the printed circuit board. Some modern insertion machine equipment uses high-speed camera technology to improve head positioning and recognition speed. Other devices use linear motors for higher speed and more precise control.

Feeding technology

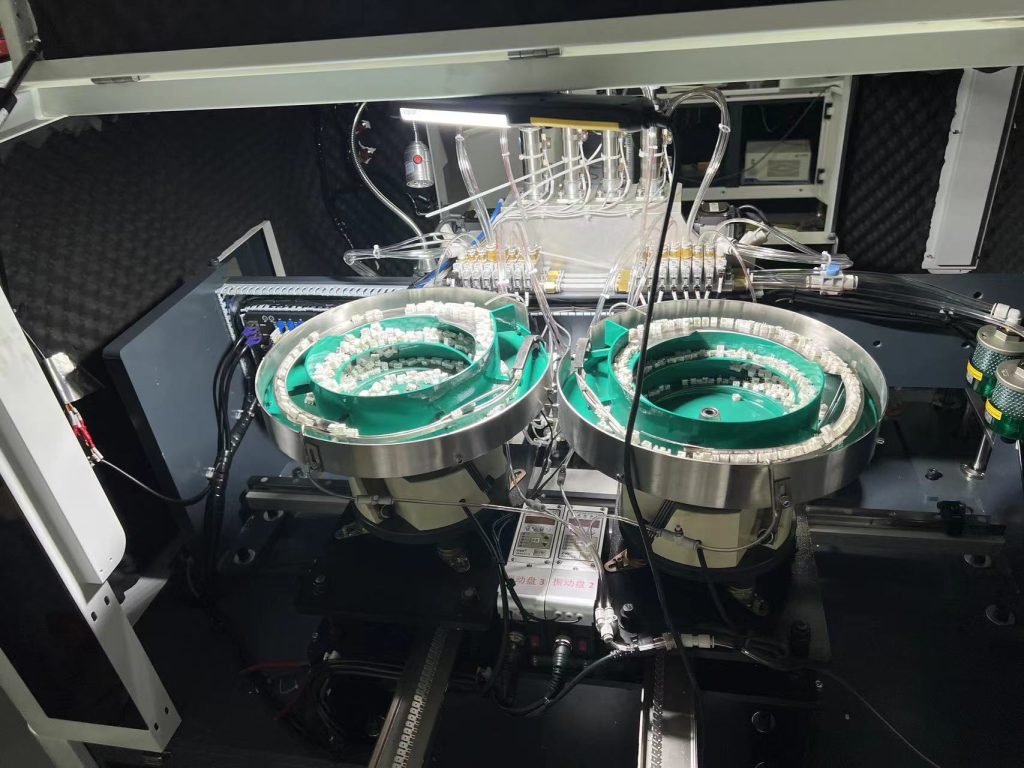

Feeding technology

insertion machine equipment needs to constantly provide electronic components to ensure uninterrupted production. Therefore, the feeding technology of the equipment is very important. Some modern insertion machine equipment uses a rotatable feeding wheel to increase the feeding speed and stability. Other devices use electronic scales to ensure that the weight and quality of each electronic component meet the requirements.

Control system technology

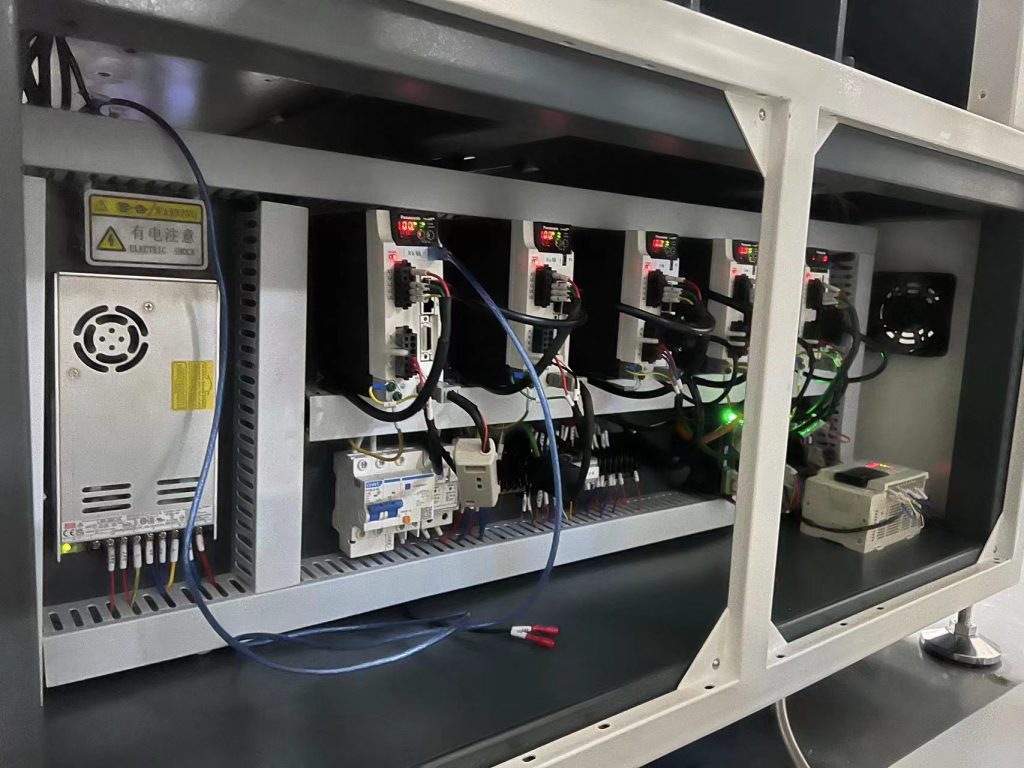

Control system technology

The control system technology of insertion machine equipment is also very important. These devices require highly precise motion control to ensure the accurate insertion of electronic components into the printed circuit board. Some modern insertion machine equipment uses closed-loop control systems to ensure that the motion speed and position of the head and feeding system are very precise. These devices can also use adaptive control systems to adapt to different types of electronic components and printed circuit boards.

Programmability technology

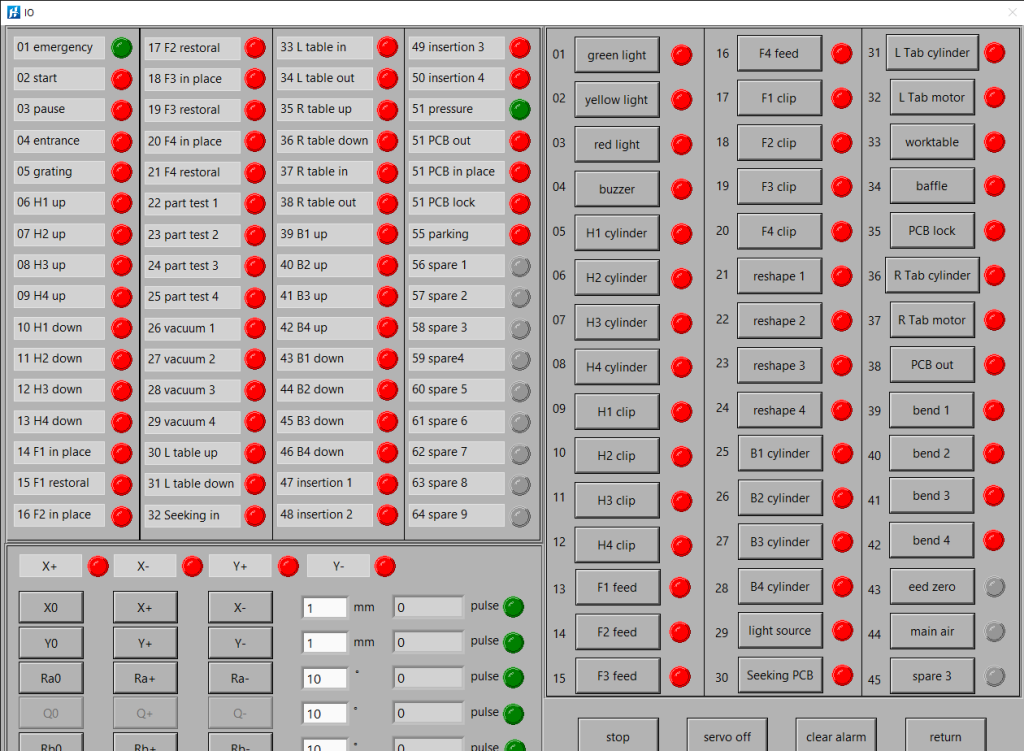

Programmability technology

insertion machine equipment needs to have some programmability to adapt to different types of electronic components and printed circuit boards. Some modern insertion machine equipment has highly programmable control systems that can adjust the parameters of the equipment in real-time during production to meet different types of production needs.

Overall, the technical aspects of insertion machine equipment are very complex and advanced. These devices require high-precision control, high-speed head technology, and stable feeding technology to achieve efficient production. As technology continues to develop and innovate, the performance and production efficiency of insertion machine equipment will continue to improve.
